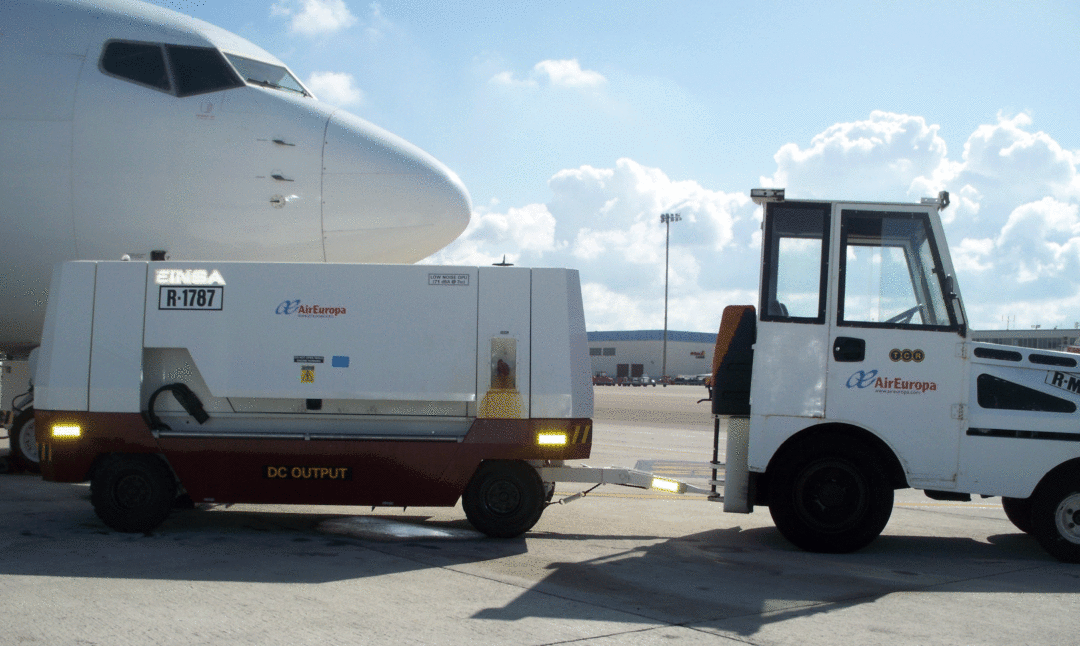

Towable Ground Power Unit, EAR

The Towable Ground Power Unit, model EAR, has been designed to provide electric current to all types of aircraft, both commercial and military, whose onboard system is equipped with A.C. three-phase, 400 Hz 115/200 V. up to 140 KVA’s.

It is also available with a DC kit to supply up to 2.500 A(peak)

The unit conforms to EN-12312-20

It is equipped with a special noise dampening kit to 71 dB (A) @7m, a turbo-charged Liquid cooled diesel engine with electronic adjustment and CANBUS, an AC single bearing Alternator, self-ventilating, brushless, 4 wires with independent excitation, meaning longer maintenance intervals (minimum 30.000 hours bearing changed) and an optimized electric circuit controlled by PLC.

It is available with a wide range of options such as 3 different outputs on DC Kit: 12V; 24V.; 28,5V., Oil Management System for automatic checks/topping up, etc
